Product Overview

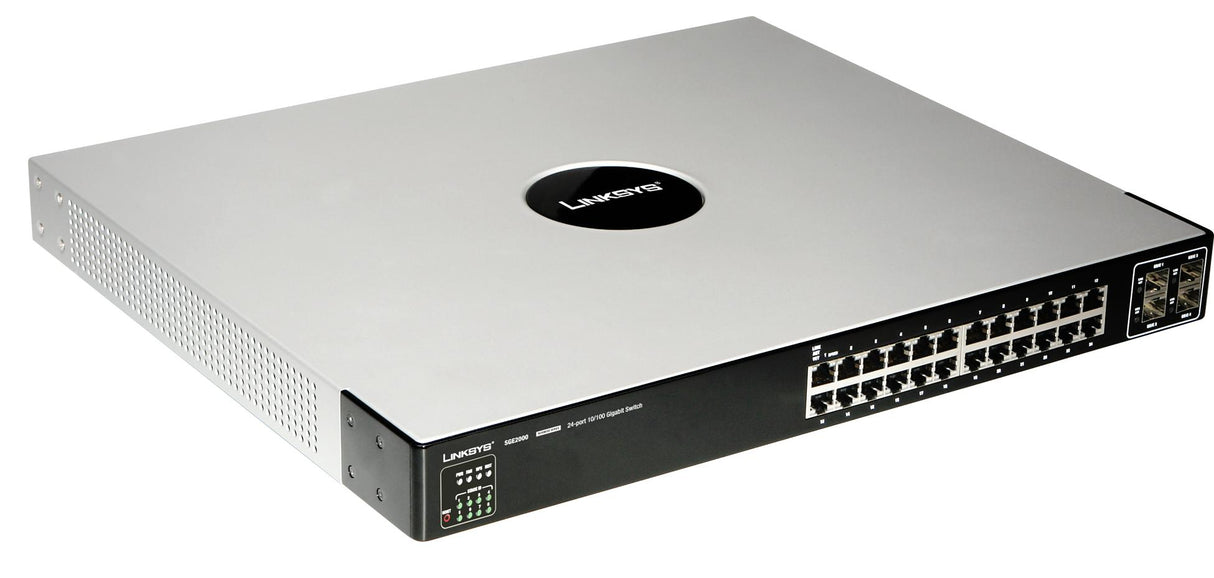

The Cisco^® SGE2000P 24-Port Gigabit Switch (Figure 1) helps maximize system availability, with fully redundant stacking and dual images for resilient firmware upgrades. The switch helps secure the network through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control lists (ACL), denial-of-service (DoS) prevention, and MAC-based filtering. The enhanced quality of service (QoS) and traffic-management features help ensure clear and reliable IP voice and video communications.

For wireless or voice over IP (VoIP) deployments, the Cisco SGE2000P supports the IEEE802.3af standard for Power over Ethernet (PoE). Automatic load sensing in the power control circuitry automatically detects PoE on the end device before providing power. For safety, each port has independent overload and short-circuit protection, along with LED indicators for power status. A maximum of 15.4W is available on the Fast Ethernet ports for powering PoE-enabled wireless access points or VoIP handsets, with a maximum per-device PoE delivery of 185W available for all ports.

The Cisco SGE2000P provides an intuitive, secure management interface, enabling network administrators to better utilize its comprehensive management feature set, for a better-optimized and more secure network.

Features

• Twenty-four 10/100/1000 Ethernet ports

• Four Small Form-Factor Pluggable (SFP) slots (shared with four copper ports) for fiber Gigabit Ethernet expansion

• IEEE 802.3af PoE delivered over any of the twenty-four 10/100/1000 copper ports

• Up to 15.4W available on the copper ports for powering PoE-enabled wireless access points or VoIP handsets, with a maximum per-device PoE delivery of 185W available for all ports

• Dual images for resilient firmware upgrades

• 48-Gbps, nonblocking, store-and-forward switching capacity

• Simplified QoS management using 802.1p, Differentiated Services (DiffServ), or type of service (ToS) traffic prioritization specifications

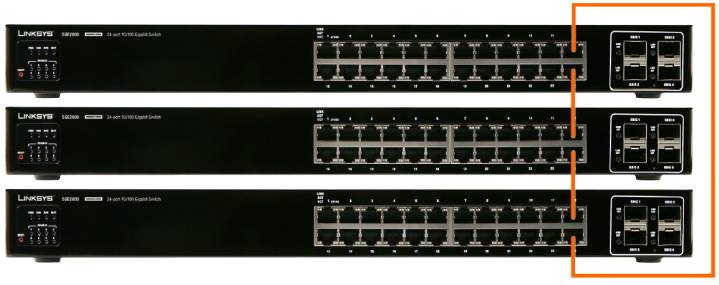

• Fully resilient stacking for optimized growth with simplified management

• ACLs for granular security and QoS implementation

• Can be configured and monitored from a standard web browser

• Secure remote management of the switch via Secure Shell (SSH) and SSL encryption

• 802.1Q-based VLANs enable segmentation of networks for improved performance and security

• Private VLAN Edge (PVE) for simplified network isolation of guest connections or autonomous networks

• Automatic configuration of VLANs across multiple switches through Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)

• User/network port-level security via 802.1X authentication and MAC-based filtering

• Increased bandwidth and added link redundancy with Link Aggregation Control Protocol (LACP)

• Enhanced rate-limiting capabilities, including back pressure and multicast and broadcast flood control

• Port mirroring for noninvasive monitoring of switch traffic

• Jumbo frame support up to 10KB

• Simple Network Management Protocol (SNMP) versions 1, 2c, and 3 and Remote Monitoring (RMON) support

• Fully rack mountable using the included rack-mounting hardware

Specifications

Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SGE2000P 24-Port Gigabit Switch.

Table 1. Specifications for the Cisco SGE2000P 24-Port Gigabit Switch: PoE

Feature	Description
Specifications
Ports	• 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 4 shared Gigabit SFP slots • Console port • Auto medium dependent interface (MDI) and MDI crossover (MDI-X) • Auto negotiate/manual setting • RPS port for connecting to redundant power supply unit
Buttons	Reset button
Cabling type	• Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX • UTP Category 5 Ethernet or better for 1000BASE-T
LEDs	PWR, Fan, Link/Act, PoE, Speed, RPS, Master, Stack ID 1 through 8
PoE
IEEE 802.3af PoE delivered over any of the twenty-four 10/100/1000 ports; power budget allows for max power of 15.4W on up to 12 ports simultaneously.
Performance
Switching capacity	Up to 48 Gbps, nonblocking
Forwarding rate (based on 64-byte packets)	Up to 35.7 mpps
Stacking
Stack operation	• Up to 8 units in a stack (192 ports) • Hot insertion and removal • Ring and chain stacking options • Master and backup master for resilient stack control • Auto-numbering or manual configuration of units in stack
Layer 2
MAC table size	8000
Number of VLANs	256 active VLANs (4096 range)
VLAN	• Port-based and 802.1Q tag-based VLANs • Protocol-based VLAN • Management VLAN • PVE • GVRP
Head-of-line (HOL) blocking	HOL blocking prevention
Layer 3
Layer 3 options	• Static routing • CIDR (classless interdomain routing) • 128 static routes • IPv4 • Forwarding in silicon - wire-speed forwarding of Layer 3 traffic
IPv6
IPv6	IPv6 Host Mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 Neighbor and Router Discovery (ND) IPv6 Stateless Address Autoconfiguration Path MTU Discovery Duplicate Address Detection (DAD) ICMPv6 IPv6 over IPv4 network with ISATAP tunnel support
IPv6 QoS	Prioritize IPv6 packets in hardware
IPv6 ACL	Drop or Rate Limit IPv6 packets in hardware
MLD Snooping	Deliver IPv6 multicast packets only to the required receivers
IPv6 Applications	Web/SSL, Telnet Server/SSH, Ping, Traceroute, SNTP, TFTP, Radius, Syslog, DNS Client
IPv6 RFCs Supported	RFC2463 - ICMPv6 RFC3513 - IPv6 Address architecture RFC 4291 - IP Version 6 Addressing Architecture RFC 2460 - Internet Protocol v6 (IPv6) Specification RFC 2461 - Neighbor Discovery for IPv6 RFC 2462 - IPv6 Stateless Address Auto-configuration RFC 1981 - Path MTU Discovery RFC 4007 - IPv6 Scoped Address Architecture RFC3484 - Default address selection mechanism is described by RFC3484 RFC4214 - ISATAP tunneling RFC4293 - MIB IPv6: Textual Conventions and General Group RFC 3595 - Textual Conventions for IPv6 Flow Label
Management

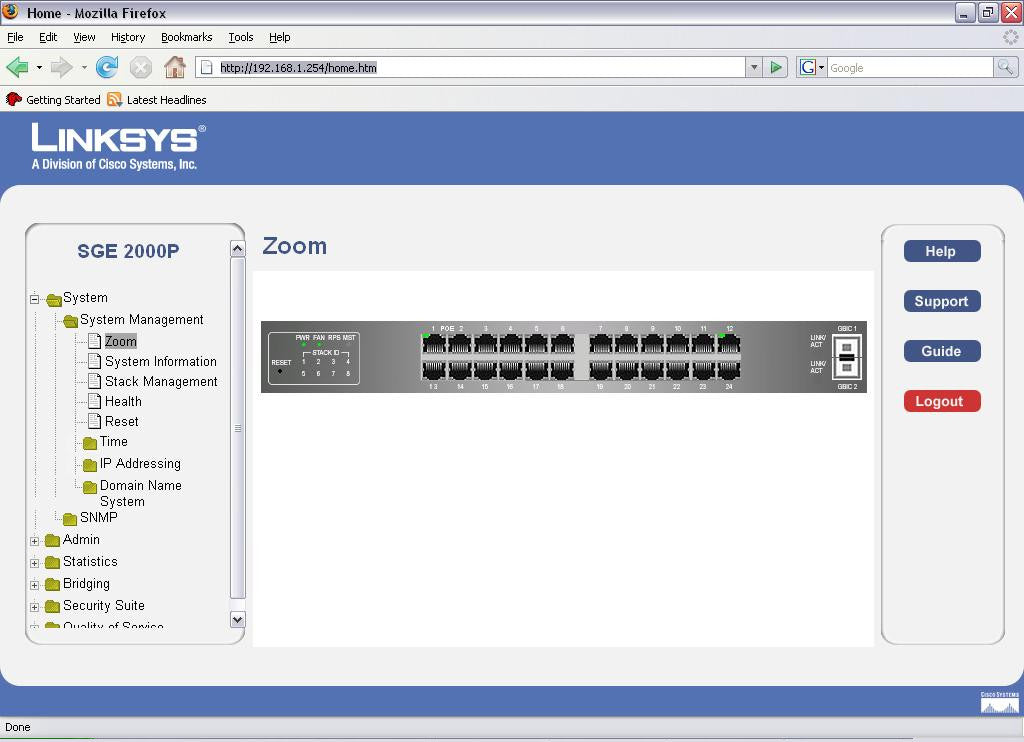

Web user interface	Built-in web user interface for easy browser-based configuration
